Details
The Ventair Airbus Exhaust Fan is a premium high powered side ducted exhaust fan engineered to maintain high airflow over longer duct runs. Back-draft damper and plug & lead included. The two plug and leads will enable you to use the light and fan motor separately.
Additional Information
| Model Number | ABGLED250BL-RD |
|---|---|
| Application | Domestic |
| Brand | Ventair |
| Colour | Black |
| Shape | Round |
| Installation Location | Ceiling |
| Installation | Includes Lead & Plug |
| Hole Size | 296mm |
| Capacity (l/s) | 91.11 l/s |
| Capacity (m3/hr) | 328 m3/hr |
| Rec Room Size (m3) | 22 |
| Noise dB(A) | 42 |
| Power (Watts) | 50 |
| Ductable | Yes |
| Duct Size | 150mm |
| Built in Draft Stopper | Yes |
| Warranty | Ventair: The manufacturer offers a 3 year warranty |

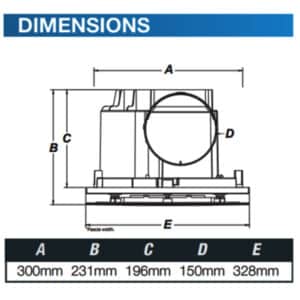

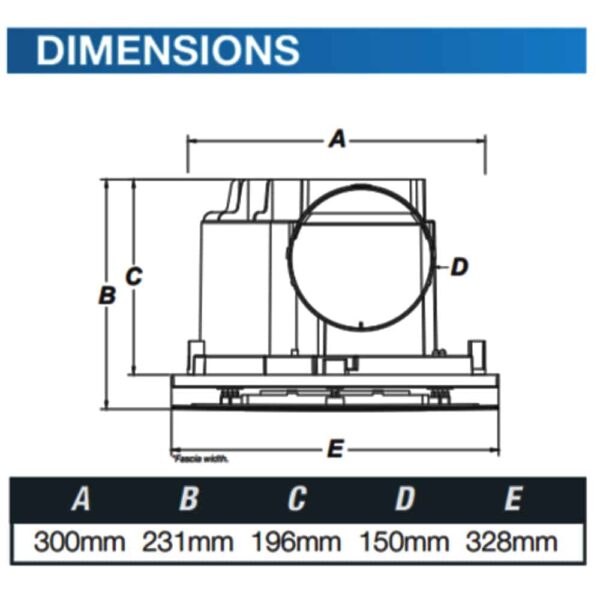

| Dimensions | Grille Size: 328mm Round Cut out size: 296mm Round Min. install depth: 220mm Duct outlet size: 150mm diameter |
| Pressure Curve |  |
| Disclaimer | *"Recommended room size" figures are based on achieving 15 air changes per hour. Generally this is sufficient, however it does not constitute specific advice. All products that require hardwiring will need to be installed by a licensed electrician. |
