This fan does not include a light

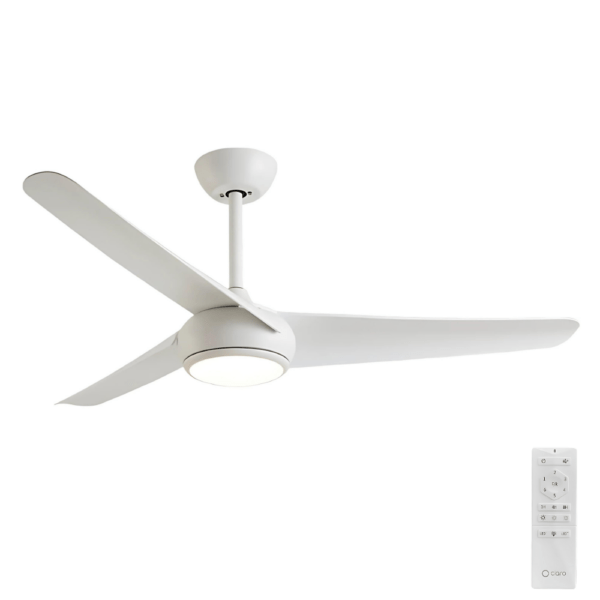

Claro Designer 3 or 5 Blade DC Ceiling Fan with Remote – White 52″
$229.00
The versatile white Claro Designer gives you the choice of having a 5 or 3-blade ceiling fan. Supplied with 5 blades in the box the fan offers exceptional airflow powered by an energy-efficient DC motor. Includes remote control for convenient operation.
Included in the box are 2 rods (125mm & 250mm) allowing you to select the suitable rod based on your ceiling height. Measurements are based on installation using a 125mm rod.
SPEND & SAVE COUPON CODES NOW ACTIVE:
Buy 1 Claro Fan save 5% – use code: 1CLARO5
Buy 2 Claro Fans save 10% – use code: 2CLARO10
Buy 3 Claro Fans save 15% – use code: 3CLARO15
Buy 4 or more Claro Fans save 20% – use code: 4CLARO20
Buy 8 or more Claro Fans save 30% – use code: 8CLARO30
You may also like…
- Description
- Airflow
- Additional information
- Reviews (1)
Description
Claro Designer Key Features
| Install Location | Indoor or Outdoor Undercover |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 18 degrees |
| Motor Type | DC |
| Operation | Remote Control |
| Summer / Winter Use? | Reversible from Remote |
| Ceiling to Blade drop | 300mm |
| Angled Ceilings? | Suitable up to 15 degrees |
| Light | Not Included (see seperate listing for light model) |
*Note – 2 rods are included in the box – (125mm and 250mm long). All measurements are based on using the 125mm rod. The 250mm rod is perfect for higher-than-average ceilings.
Claro Designer Performance Data if used with 5 blades
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 81 | 4W | 6,600 m3/hr |
| 2 | 106 | 8.4W | 8,940 m3/hr |
| 3 | 132 | 14.6W | 9,900 m3/hr |
| 4 | 150 | 21.2W | 11,580 m3/hr |
| 5 | 160 | 27.8W | 13,200 m3/hr |
| 6 | 175 | 35W | 15,120 m3/hr |
Claro Designer Performance Data if used with 3 blades
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 90 | 5W | 6,060 m3/hr |
| 2 | 130 | 8.5W | 8,400 m3/hr |
| 3 | 154 | 16W | 9,360 m3/hr |
| 4 | 176 | 22W | 11,280 m3/hr |
| 5 | 190 | 31W | 12,540 m3/hr |
| 6 | 210 | 37W | 14,400 m3/hr |
Additional information
| Brand | Claro |
|---|---|
| Manufacturers Part Number | C4000/101A |
| Light Option | Fan without Light |
| Warranty Details | Claro Fans – 4 Year Motor Warranty – 1 Year in home warranty + a further 3 year replacement motor warranty upon product registration. Conditions apply. |
| Installation Location | Indoor, Outdoor – Undercover |
| Overall Diameter | 132cm (52") |
| Control | Remote Control |
| Motor Type | DC |
| Blade Material | Plastic |
| Motor Colour | White |
| Blade Colour | White |
BarCode Number : 754523091372
Ceiling Fan Installation Disclaimer
1. All electrical goods require installation from a licensed electrician. Please wait for your goods to arrive before booking your electrician. It is important that you keep your electrician’s certificate of installation in a safe place.
2. Ceiling fans should be installed so you have a minimum of 2.1m from blade to floor, however please check with your local council regulations and electrician to assess your individual needs.
Ceiling Fan Warranty Disclaimer
1. Ensure installation takes place by a licensed and qualified electrician unless otherwise stated. Proof is often required upon requesting a warranty – this proof will need to be in the form of an invoice or receipt detailing the name and licence.
2. Never take down your fan if there is a fault before contacting the warranty line. Most warranties are in-home therefore will only take effect on installed fans unless otherwise instructed.
3. You must maintain your ceiling fan to prevent corrosion damage to the finishes. A lack of maintenance causing damage is not covered by warranty. See your fan instructions for care / maintenance instructions.
4. For comprehensive warranty information + terms and conditions please visit the manufacturers website.
1 review for Claro Designer 3 or 5 Blade DC Ceiling Fan with Remote – White 52″
Only logged in customers who have purchased this product may leave a review.
Vincent Boeske (verified owner) –
A very quiet fan, that runs smoothly and puts out good airflow.
