Ventair Mixflow Inline Fan 200mm

Ventair Mixflow Inline Fan 200mm

Ventair Mixflow Inline Fan 200mm

Original price was: $461.00.Current price is: $419.00.

In stock

Original price was: $461.00.Current price is: $419.00.

The Ventair Mixflow 200 has two speeds via external switch. The lower setting has an output capacity of 753m3/hr, the higher setting has an output capacity of 852m3/hr. The fan is ideal for long duct runs due to its high static pressure. The fan has a lead and plug included for easy intallation.


Ventair Mixflow Features Overview:

Capacity 823 m3/hr 753 m3/hr
Noise 53 dB(A) 45 dB(A)
Wattage 130w 105w
Ductable Yes – 200mm diameter
The Ventair Mixflow is a high quality inline exhaust fan. The fan features a long life ball bearing motor that coems with a lead and plug for easy installation. The Ventair Mixflow is designed for quiet room to room air transfer or extraction and is ideal for multiple inlets. This 200mm model has a maximum airflow of 852m³/hr, at a decibel rating of only 53dBA at high setting. This model is designed to be ducted using 200mm ducting and can be used for a variety of domestic and commercial extraction applications. See accessories below for the controller and other components designed to be used in conjunction with the fan.

Ventair Mixflow Inline Fan Features:

  • Commercial grade performance
  • Integrated energy saving backdraft shutter
  • Ideal for hot & cold air transfer
  • Powerful 130W long life ball bearing motor
  • 2 speeds: High (852m³/hr) /Low (753 m³/hr) via external switch
  • Noise rating: 53 dBA (High) / 45 dBA (Low)
  • RPM: 2500 (High) / 2200 (Low)
  • Lead & plug included

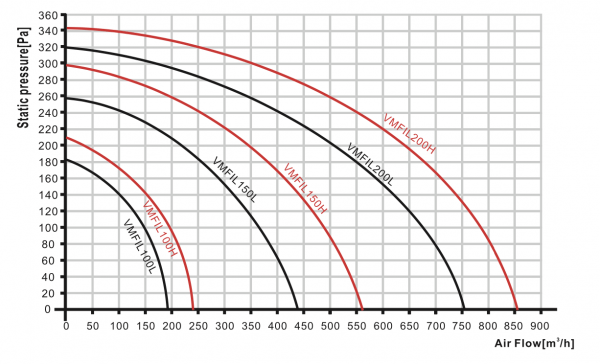

  • High static pressure makes it ideal for longer duct runs
  • Rated to 80,000 hours continous runtime
  • Rated to 30,000 start cycles
  • Designed for 200mm ducting
  • IPX4 rated
  • 5 Year Ventair Warranty

Additional information






Includes Lead & Plug


Ventair: The manufacturer offers a 5 year warranty

Motor Type


Manufacturers Part Number


BarCode Number : 9339310003526

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in 'freeflow'. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
