Ventair DC3 Ceiling Fan with CCT LED Light & Wall Control - White 48

Ventair DC3 Ceiling Fan with CCT LED Light & Wall Control - White 48"

january ceiling fan sale

Ventair DC3 Ceiling Fan with CCT LED Light & Wall Control - White 48"

The Ventair DC3 Ceiling Fan features a 48" diameter, comes with CCT LED light and is powered by an energy efficient DC motor. The blades are made by composite glass fibre for extra strength, higher durability and are easily assembled. This ceiling fan is perfect for both indoor and outdoor covered use, with a high airflow capacity, 5 selectable speeds and a hard wired wall control for higher efficiency. The fan has a 20w CCT LED light that is 5 step dimmable by the wall control and generates a total Lumen output of 1800 Lumens. For more information please see the additional specs listed down below.

Regular Price $329.00 Special Price $279.00
SKU
CFVADC32LWHW

Key Features:

Install Location: Indoor/Outdoor (covered)
Blade Material: Glass Fibre Composite
Blade Span: 48" (122 cm)
Motor Type: DC
Operation: Wall Control
Summer/Winter Use: Reversible from Wall Control

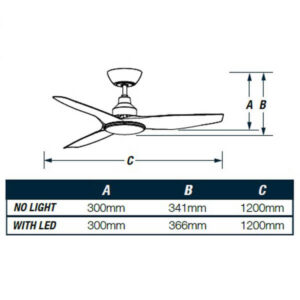

Ceiling to Base of Light Drop: 366mm
Angled Ceilings? Suitable up to 15 degrees
Light: Integrated LED Light

Other Details:

  • Intelligent energy saving DC technology
  • Up to 75% less power consumption
  • Comes with a 5 speed wall control
  • Brushless DC Motor Technology at an affordable price

Performance Data:

SPEED RPMS WATTS AIRFLOW
1 72 2.2 Not tested
2 110

5

Not tested
3 147 9 Not tested
4 175 15 Not tested
5 214 26 13,580 m3/hr

Performance Summary:

  • Class leading energy efficient DC motor
  • Moderate to high airflow
  • Popular choice for bedrooms
  • This model utilises a DC motor, however it has an internal inverter and is therefore compatible with normal AC electrical systems. It cannot be connected directly to a DC power source.

Light Information

Fitting Integrated LED Light
Operation Wall Control
Wattage 20w
Colour Temperature

3 temperatures

(Warm/Natural/Cool)

Brightness (Lumens) 1800 Lumens
Dimmable? Dimmable

Understanding the LED light:

  • Features CCT LED light, has 5 levels of brightness and is dimmable as well
  • Moderate brightness
  • Very energy efficient, has a 20 watt LED light panel
More Information
Model Number DC31203WH-L
Motor Type DC
Brand Ventair
Style Modern
Location Indoor, Outdoor - Damp Location (undercover)
Blade Span (Size) 48" (122cm)
Motor Colour White
Blade Colour White
Blade Colour (Reverse) White
Blade Material PC Composite(Plastic)
IP Rating No IP Rating Specified
Light Kit Included
Globe Specification 20W CCT LED
Globe Fitting 20w LED
Drop (Ceiling to Blade) 366mm to base of light
Number of Blades 3
Airflow (Max) 13,580 m3/hr
RPM (High) 214
RPM (Low) 72
Motor (max) 26
Reversible (Summer/Winter) Reversible From Wall Control
Speeds 5 speeds
Voltage 240V - Standard
Suitability for Raked Ceilings Suitable up to 15°
Warranty Details Ventair: This fan comes complete with a 2 year Manufacturer’s in-home warranty and a further 3 year replacement warranty on the fan motor. Conditions apply – see www.ventair.com.au/warranty for more information.
Warranty Disclaimer ** Enclosed Outdoors: Products installed at least 1.5m from the perimeter of the roof / eaves of the enclosure (for protecting the product from direct or indirect rain water or sunlight)., 1. Ensure installation takes place by a licensed and qualified electrician unless otherwise stated. Proof is often required upon requesting a warranty - this proof will need to be in the form of an invoice or receipt detailing the name and licence. --, 2. Never take down your fan if there is a fault before contacting the warranty line. Most warranties are in-home therefore will only take effect on installed fans unless otherwise instructed. --, 3. You must maintain your ceiling fan to prevent corrosion damage to the finishes. A lack of maintenance causing damage is not covered by warranty. See your fan instructions for care / maintenance instructions. --
Installation Disclaimer 1. All electrical goods require installation from a licensed electrician. Please wait for your goods to arrive before booking your electrician. It is important that you keep your electrician's certificate of installation in a safe place. --, 2. Ceiling fans should be installed so you have a minimum of 2.1m from blade to floor, however please check with your local council regulations and electrician to assess your individual needs. --
Notice / Disclaimer If you have any questions - please contact us.
