Mercator Rhino DC Key Features
| Installation Location | Indoor, Outdoor Undercover |
|---|---|
| Blade Material | Aluminium |
| Overall Diameter | 214cm (84″) |
| Blade Pitch | Highly Curved |
| Motor Type | DC |
| Control Type | Remote Control |
| Summer/Winter Use? | Reversible From Remote |
| Ceiling to Blade Drop | 468mm (506mm to base of motor ) |
| Angled Ceilings? | Suitable for angled ceilings up to 11 degrees |
| Light Included? | Not Included |
Pre-assembled for easy installation, it is tropically rated and light adaptable. An extension rod can increase the maximum angled ceiling compatibility to 12 degrees with the 300mm rod and 21 degrees with the 600mm rod.
Mercator Rhino Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | Not Tested | 4.1 | Not Tested |
| 2 | Not Tested | 7.6 | Not Tested |
| 3 | Not Tested | 11.4 | Not Tested |
| 4 | Not Tested | 19.2 | Not Tested |
| 5 | Not Tested | 35 | 13,500 m3/hr |

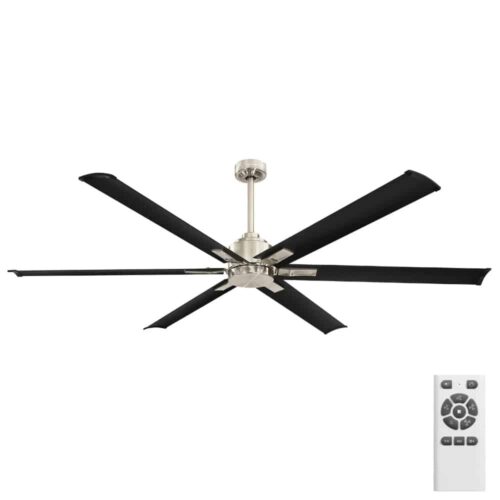

Supplied with a 5-speed remote control with timer (1H, 4H or 8H) and reverse mode for summer and winter use.
