Sanctuary DC ceiling fan

Fanco Sanctuary DC Ceiling Fan with Teak Timber Blades - Black 70"

sale

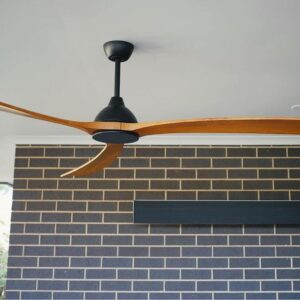

Fanco Sanctuary DC Ceiling Fan with Teak Timber Blades - Black 70"

The Fanco Sanctuary (W-CFFCSA4MB-B4TK) with Black Motor and blades in an imposing 70" diameter is the perfect choice for a large living spaces. The fan is powered by an energy efficient DC motor and features a modern design with three solid timber blades. These solid blades have a waterproof sealant applied ensuring that the fan can be used in an outdoor undercover space as well as a coastal environment.

Customers please note due to the overall size of this fan and the longer than standard ceiling to blade drop of 420 mm we would recommend installation on a ceiling height of at least 2.6m.

Regular Price $699.00 Special Price $599.00
SKU
W-CFFCSA4MB-B4TK

Key Features:

Install Location: Indoor / Outdoor* & Coastal
Blade Material: Solid Timber
Blade Span: 70" (177.8cm)
Motor Type: Energy Saving DC Motor
Operation: Remote Control
Summer/Winter Use: Reversible From Remote
Ceiling to Base of Motor Drop: 485mm
Angled Ceilings? Suitable up to 15 degrees
Light: No Light

Other Details:

  • Attractive solid timber blades
  • Anti corrosive paint applied on all metal components & waterproof sealer on solid timber blades
  • 6 Speed remote control included
  • Remote includes timer, select from 1H / 4H / 8H



Performance Data:

SPEED RPMS WATTS AIRFLOW
1 55 5.4 3,150 m3/hr
2 86 10.3 5,230 m3/hr
3 103 15 6,879 m3/hr
4 115 20 8,520 m3/hr
5 128 26 9,053 m3/hr
6 147 38 11,176 m3/hr



Performance Summary




  • Can be used all year round with model reversible via included remote
  • Low running costs - uses only 38W from efficient DC motor on max speed.

*Needs to be installed in an enclosed outdoor area for warranty to apply. The fan must be shielded from wind and rain (enclosed area, min. 1.5m from edge of eave/roof under all circumstances). The warranty will cover open circuit motor faults, and remote control faults if not related to outdoor exposure. The Warranty will not cover outdoor related issues such as rusting, or failure clearly caused by water, moisture or wind. It will not cover external appearance or finish of any part of the ceiling fan.

Please ensure that the fan is installed with a 70cm clearance between the tip of the blades and any ceiling beams, walls or roof edges.

This model utilises a DC motor, however it has an internal inverter and is therefore compatible with normal AC electrical systems. It cannot be connected directly to a DC power source.

More Information
Model Number W-CFFCSA4MB-B4TK
Motor Type DC
Brand Fanco
Style Basic, Modern, Architectural / Designer
Location Indoor, Outdoor - Damp Location (undercover), Outdoor - Coastal Location (limited)
Blade Span (Size) 70" (178cm)
Motor Colour Matte Black
Blade Colour Teak
Blade Material Timber
IP Rating No IP Rating Specified
Blade Pitch 10 ̊ (approx)
Drop (Ceiling to Blade) 420mm
Number of Blades 3
Airflow (Max) 11,176 m3/hr
RPM (High) 147
RPM (Low) 55
Motor (max) 38w
Reversible (Summer/Winter) Reversible From Remote
Speeds 6 speeds
Voltage 240V - Standard
Suitability for Raked Ceilings Suitable up to 15°
Warranty Details Fanco: 5 year warranty - 2 year in home repair or replace warranty followed by 3 year repair or replacement warranty for motor only. Conditions apply and labour cost is limited, visit the fanco website for more information.
Warranty Disclaimer ** Enclosed Outdoors: Products installed at least 1.5m from the perimeter of the roof / eaves of the enclosure (for protecting the product from direct or indirect rain water or sunlight)., 1. Ensure installation takes place by a licensed and qualified electrician unless otherwise stated. Proof is often required upon requesting a warranty - this proof will need to be in the form of an invoice or receipt detailing the name and licence. --, 2. Never take down your fan if there is a fault before contacting the warranty line. Most warranties are in-home therefore will only take effect on installed fans unless otherwise instructed. --, 3. You must maintain your ceiling fan to prevent corrosion damage to the finishes. A lack of maintenance causing damage is not covered by warranty. See your fan instructions for care / maintenance instructions. --
Installation Disclaimer 1. All electrical goods require installation from a licensed electrician. Please wait for your goods to arrive before booking your electrician. It is important that you keep your electrician's certificate of installation in a safe place. --, 2. Ceiling fans should be installed so you have a minimum of 2.1m from blade to floor, however please check with your local council regulations and electrician to assess your individual needs. --
Notice / Disclaimer If you have any questions - please contact us.
