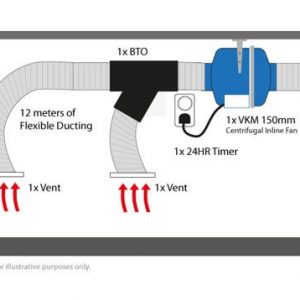

View the image gallery for a typical installation diagram.
Sub Floor Kit Includes
- 1x VKM 150mm Inline fan
- 2x 6m of 150mm duct
- 3x External Vents
- 1x BTO (150x150x150)
- 1x 24hour Timer (The timer is plugged into a standard power point)
- 1x Flex & Plug (The fan is then plugged into the timer)
- 1x Roll on hanging tape (allows ducting to hang from joists)
- 1x Roll of duct tape (allows secure connection of the system)
Some buildings have very little subfloor ventilation. Inadequate underfloor ventilation can lead to an accumulation of moisture in the sub floor. This in turn can cause structural and health problems for the home and it’s occupants.
The most common reason for inadequate under floor ventilation is that there not enough vents, or they are too small for the size and layout of building. Building extensions, building location and soil type can all contribute to problems in the subfloor.
|Installation||Includes Lead & Plug|
|Capacity (l/s)||153 l/s|
|Capacity (m3/hr)||555 m3/hr|
|Rec Room Size (m3)||37|
|Built in Draft Stopper||No|
|Warranty||The Manufacturer offers a 2 year replacement warranty (conditions apply)|
|Disclaimer||*'Recommended room size" figures are based on achieving 15 air changes per hour. Generally this is sufficient, however it does not constitute specific advice. All products that require hardwiring will need to be installed by a licensed electrician.|
