Sale Fanco OV 4E 350 Commercial Exhaust fan

Fanco OV 4E 350 Commercial Exhaust fan

$399.00 $379.00
Brand

The OV 4E Commercial Exhaust Fan is a wall or ceiling mounted fan which is ideally suited for high usage domestic or commercial applications. The fans have good quality ball bearing motors which are suitable for continuous running.


OV 4E Features Overview:


Installation:Wall / Ceiling
Colour:White (Silver blades)
Capacity2500 m3/hr
Noise:62 dB(A)
Wattage:140 w
Ductable:Yes - Very Short Length ONLY
Hole Size:388mm






Be the first to review this product

Product Code: ECVUOV350E

Details

The OV 4E exhaust fan is a commercial grade fan that can be speed controlled (you will need to purchase the controller listed as an accessory). The fan can only be connected to very short lengths of duct and is well suited for a wide range of commercial applications.

  • Designed to be mounted to a wall or ceiling.
  • The fan casing is made of steel with polymeric coating.
  • The terminal box is fitted with a cord for remote connection.
  • Single-phase asynchronous motor with external rotor is equipped with thermal overheating protection.
  • Automatic restart as well as ball bearings for long service life.
  • Motor rating protection IP 24.
  • Ductable – Suits 400mm Duct (must be short straight lengths).

  • Additional Information

    Model Number ECVUOV350E
    Application Commercial
    Brand Fanco
    Colour White
    Motor Type Axial
    Shape Square
    Installation Location Wall or Ceiling
    Installation Requires Hardwiring (electrician required)
    Hole Size 388mm
    Capacity (l/s) 694.44 l/s
    Capacity (m3/hr) 2500 m3/hr
    Rec Room Size (m3) 167
    Noise dB(A) 62
    Power (Watts) 140
    Ductable Yes
    Duct Size 400mm
    Built in Draft Stopper No
    Warranty Fanco: The Manufacturer offers a 2 year replacement warranty (conditions apply)

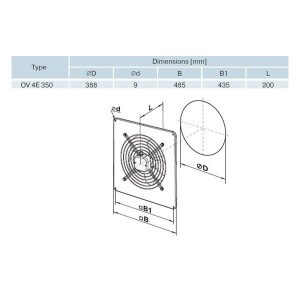

    Dimensions fanco ov 4e commercial fan dimensions
    Pressure Curve fanco ov 4e commercial fan pressure curve
    Disclaimer *'Recommended room size" figures are based on achieving 15 air changes per hour. Generally this is sufficient, however it does not constitute specific advice. All products that require hardwiring will need to be installed by a licensed electrician.
