Maxair Wall Exhaust Fan 200mm White


The Maxair Exhaust Fan is a good quality wall mounted exhaust fan which includes electric shutters to prevent back drafts. The fan is available in two sizes. The fan is designed to fit a 230mm hole size - however it can be installed in a larger hole if used with the wall plate adaptor (see accessories below).

Maxair Features Overview:

Capacity600 m3/hr
Noise:50 dB(A)
Wattage:45 w
Hole Size:Berween 220mm - 250mm



Be the first to review this product

Product Code: EWAF200


The Maxair exhaust fans are the easiest to install and are supplied with unique ductwork that will easily fit walls between 110 and 310mm deep. No cable ties or tape is needed, as the duct attaches easily to the fan’s unique ‘duct grippers’. Both fans are configured to allow a flex and plug to be fitted or they can be wired direct.

Additional Information

Model Number EWAF200
Application Domestic
Brand Clipsal
Colour White
Shape Square
Installation Location Wall
Installation Requires Hardwiring (electrician required)
Hole Size Between 220mm - 250mm
Capacity (l/s) 166.67 l/s
Capacity (m3/hr) 600 m3/hr
Rec Room Size (m3) 40
Noise dB(A) 50
Power (Watts) 45
Ductable No
Built in Draft Stopper Yes
Warranty The Manufacturer offers a 3 year replacement warranty (conditions apply)

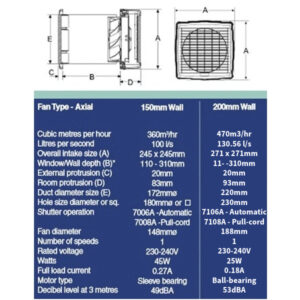

Dimensions maxair wall fan dimensions
Disclaimer *"Recommended room size" figures are based on achieving 15 air changes per hour. Generally this is sufficient, however it does not constitute specific advice. All products that require hardwiring will need to be installed by a licensed electrician.
