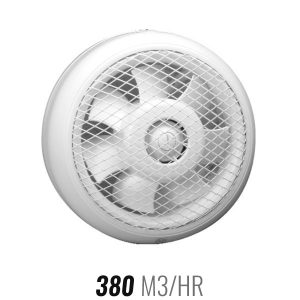

HCM 180 Exhaust Fan White


The HCM Exhaust Fan is suitable for applications ranging from domestic kitchens, bathrooms, commercial offices and all types of small or confined areas. All HCM Exhaust Fans are of compact low profile design and have weather and impact resistant plastic housings with integral air operated shutters.

HCM Features Overview:

Installation:Window or Wall
Capacity380 m3/hr
Noise:35.6 dB(A)
Wattage:25 w
Hole Size:220mm - 225mm



Be the first to review this product

Product Code: EWFTHC2


The HCM exhaust fan can be installed for exhausting through windows, walls or panels. For wall installation you may require the wall rods and wall tube, which are listed as accessories below.

  • Compact, low profile design
  • Weather and impact resistant plastic housing
  • Integrated gravity operated shutters
  • Sickle shaped impellers for high performance
  • Quiet operation
  • Powerful air flow performance
  • Rated "Continuous Run"
  • 220-240V, 50Hz

  • Additional Information

    Model Number EWFTHC2
    Application Domestic
    Colour White
    Shape Round
    Installation Location Wall or Window
    Installation Requires Hardwiring (electrician required)
    Window Hole Size 220mm - 225mm
    Capacity (l/s) 105.56 l/s
    Capacity (m3/hr) 380 m3/hr
    Rec Room Size (m3) 25
    Noise dB(A) 35.6
    Power (Watts) 25
    Ductable No
    Built in Draft Stopper Yes
    Warranty The Manufacturer offers a 2 year replacement warranty (conditions apply)
    Dimensions hcm exhaust fan dimensions

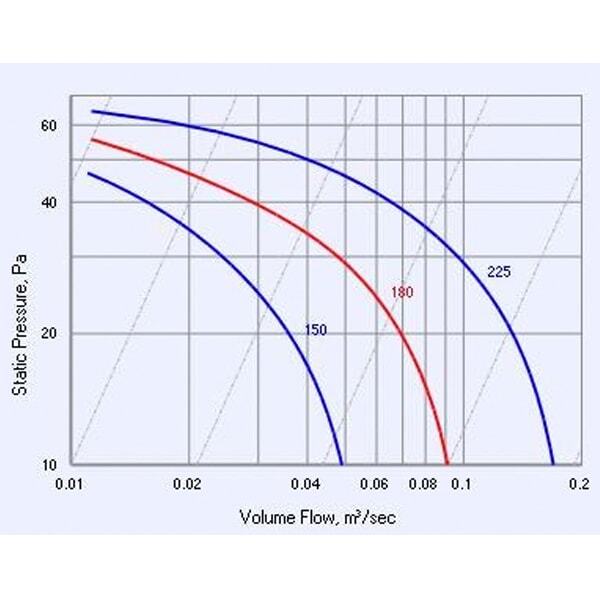

    Pressure Curve hcm pressure curves
    Disclaimer *'Recommended room size" figures are based on achieving 15 air changes per hour. Generally this is sufficient, however it does not constitute specific advice. All products that require hardwiring will need to be installed by a licensed electrician.
