Sale Fanco Centrifugal VKM Inline Fan 315mm

Fanco Centrifugal VKM Inline Fan 315mm

$499.00 $440.00

The Fanco VKM 315 is a quality centrifugal inline fan that may be used for exhaust, air transfer and other applications. It is a centrifugal design which means the fan moves good air volumes against high pressure. View technical details below.

VKM Features Overview:

Installation:Usually Roofspace
Capacity1880 m3/hr
Noise:54 dB(A)
Wattage:296 w
Ductable: Yes (350mm duct)


Be the first to review this product

Product Code: EXVUV315


The Fanco VKM range is a style of fan that can be used with long lengths of duct. Please refer to the performance curves for more information. The fan is available in 6 sizes and comes with a high quality, long life motor that is continuously rated. the casing is metal and this listing also includes mounting brackets, meaning the fan can be installed at any angle.

VKM Range Features:

  • Steel casing provides reliable operation in case of outdoor installation.
  • Overheating protection with automatic restart.
  • Ball bearing motor for long service life designed for at least 40 000 hours.
  • For precise features, safe operation and low noise, each turbine is dynamically balanced.
  • Motor protection rating IPX4.
  • The fan has a single speed motor but can be used in conjunction with a variable speed controller if you wish to manipulate the speed (see accessories below). This product would need to be wired to the fan by an electrician.

    This fan needs to be hardwired by an electrician.

    Additional Information

    Model Number EXVUV315
    Application Commercial
    Brand Fanco
    Colour Blue
    Motor Type Centrifugal
    Shape Round
    Installation Requires Hardwiring (electrician required)
    Capacity (l/s) 522 l/s
    Capacity (m3/hr) 1880 m3/hr
    Rec Room Size (m3) 125
    Noise dB(A) 54
    Power (Watts) 296
    Ductable Yes
    Duct Size 350mm
    Built in Draft Stopper No
    Warranty The Manufacturer offers a 2 year replacement warranty (conditions apply)

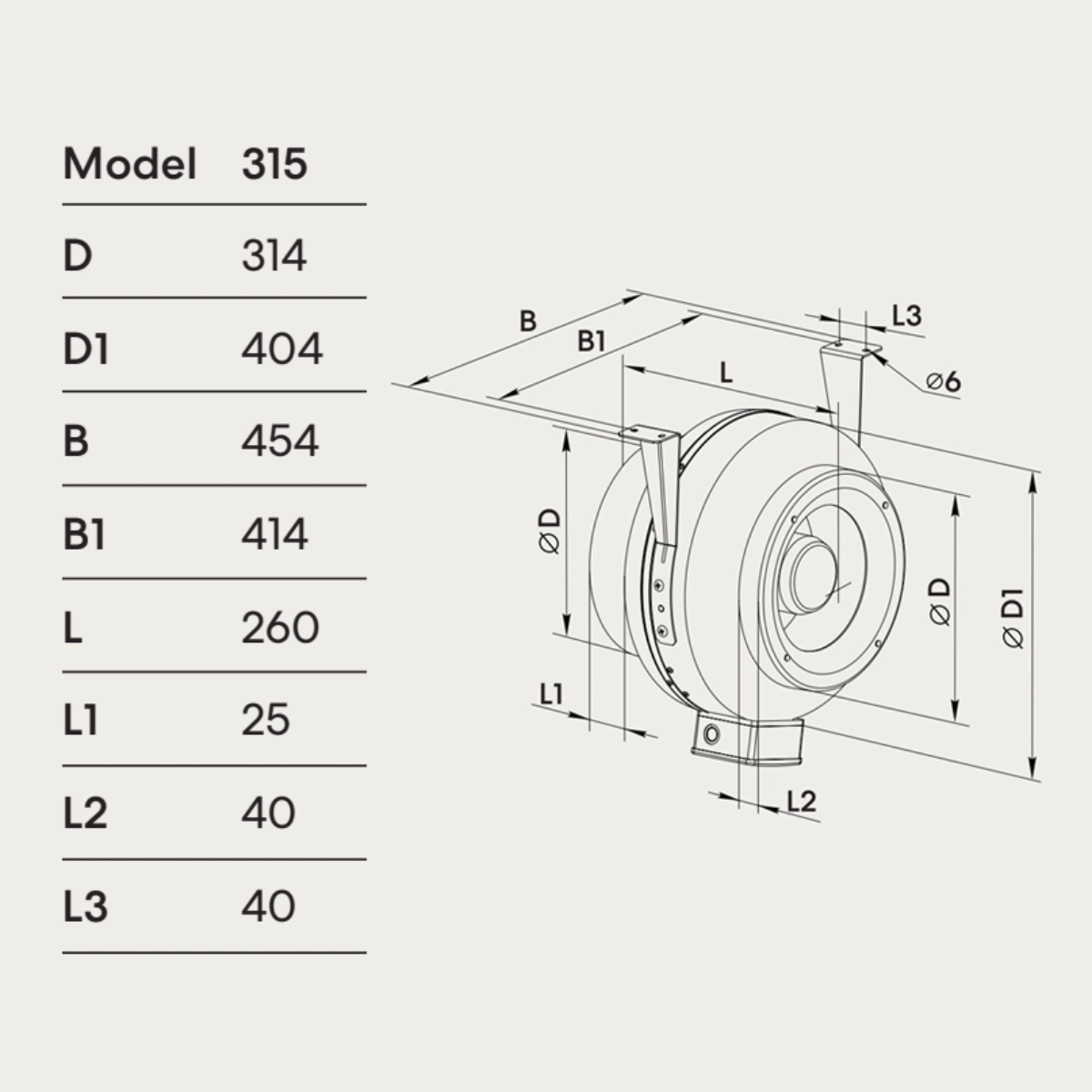

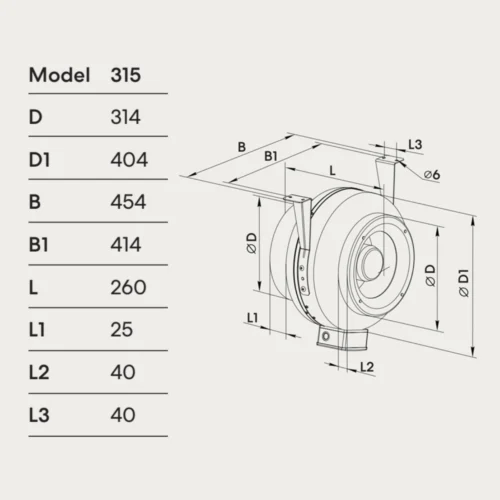

    Dimensions vkm dimensions

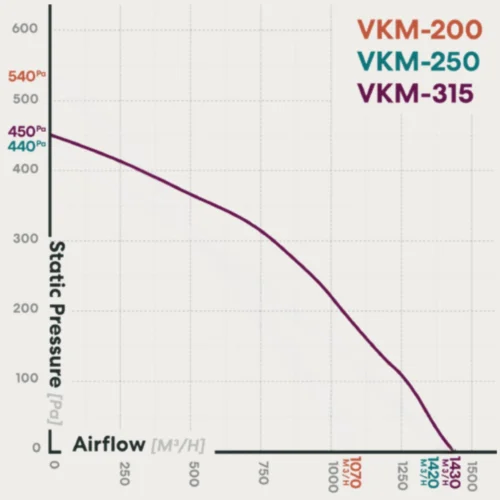

    Pressure Curve vkm curve
    Disclaimer *'Recommended room size" figures are based on achieving 15 air changes per hour. Generally this is sufficient, however it does not constitute specific advice. All products that require hardwiring will need to be installed by a licensed electrician.
